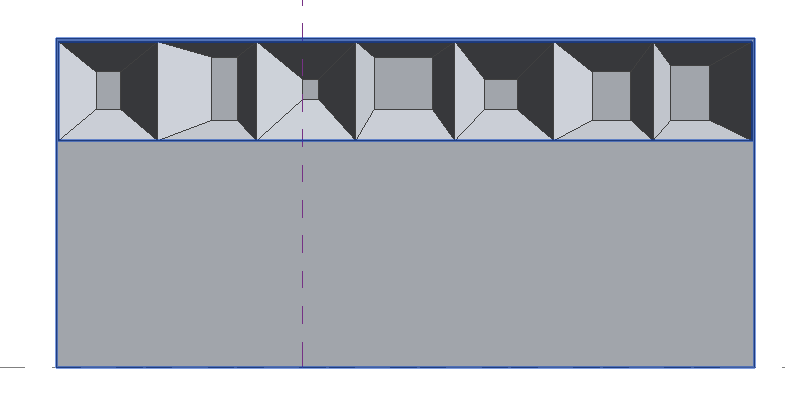

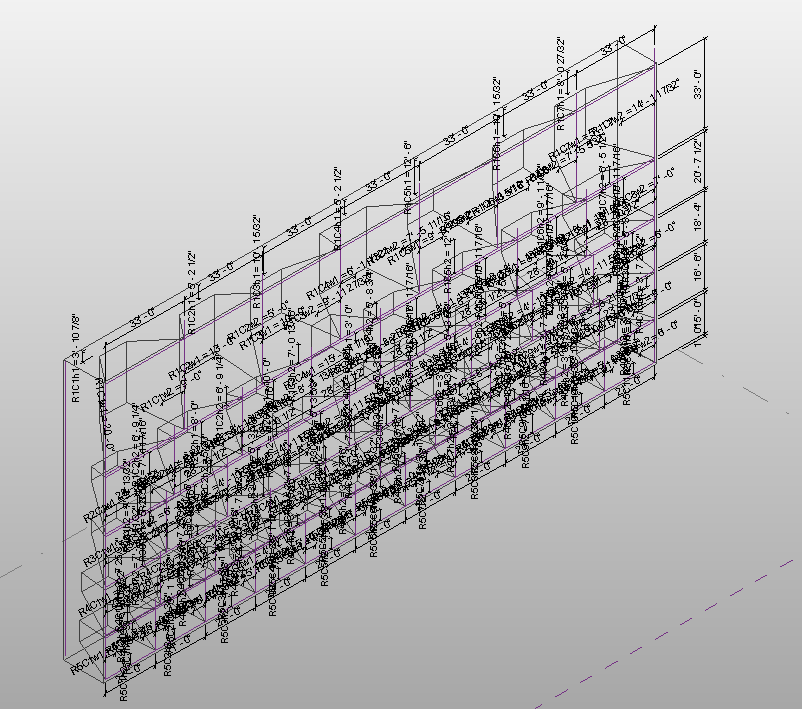

LEON AUDITORIUM - Study II







Least common multiple of 7,8,9,10, and 11 is 27,720.

The length of the building is 0.1 X 27,720 inch + (10 inch X 2)=2792 inches.

The height of the building is 0.1X12,415 inch+ (12 inch X6) = 1313.5 inches.

Each level has 12 inches gap between levels.



No in each row

Length (inch)

Height (inch)

Depth (inch)

Row 1

7

396

396

180+20 = 200

Row 2

8

346.5

247.5

200

Row 3

9

308

220

200

Row 4

10

277.2

198

200

Row 5

11

252

180

200
